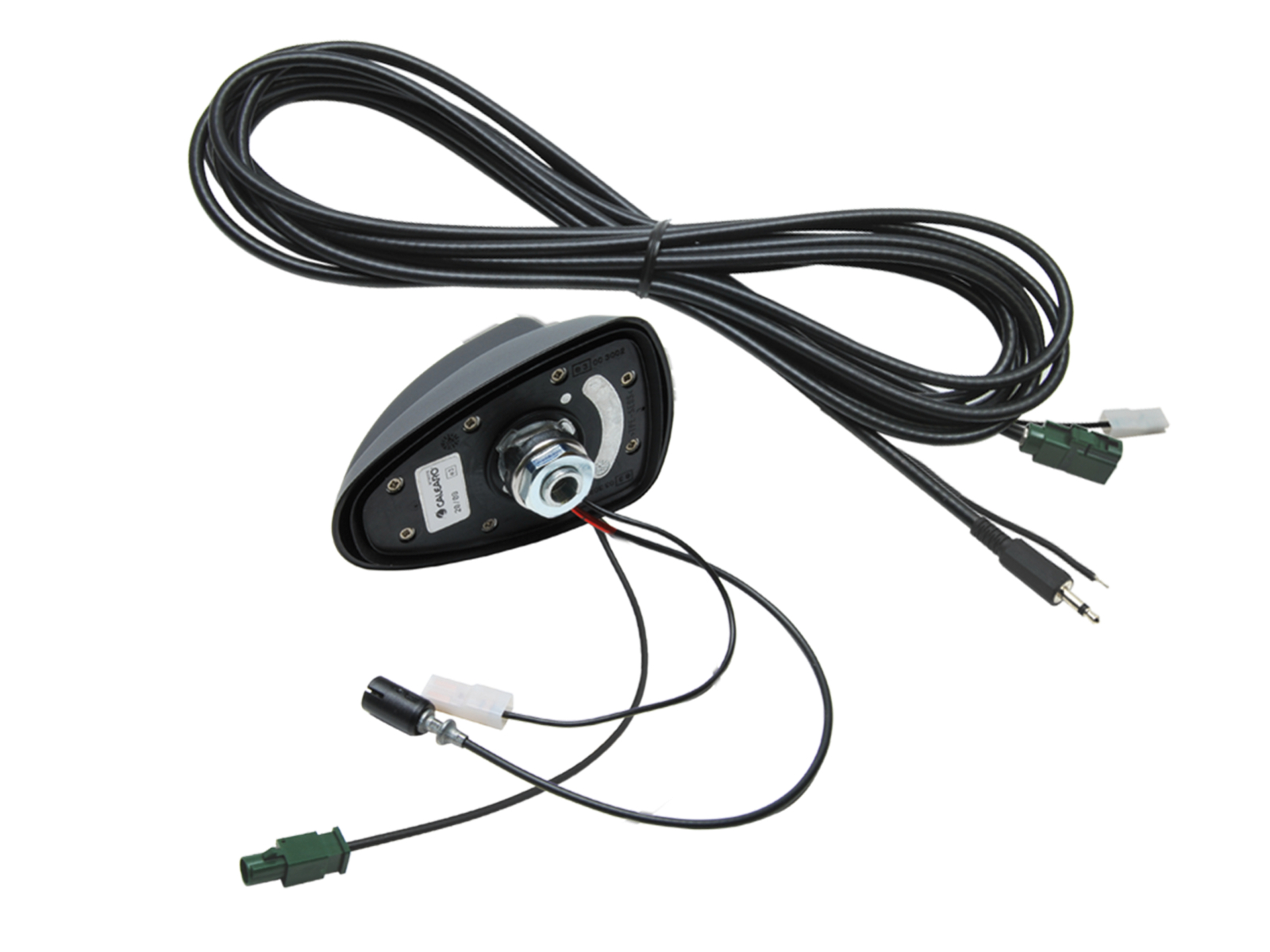

Shark II Antenne BI-TV > HC 97 (f)
from
$149,00
Netto: $149,00
- Stock: In Stock
- Brand: Antenne
- Model: 85042
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Shark II Antenne BI-TV > HC 97 (f)
Bauform Shark II
AM/FM 12V
TV/DVB-T 12V
Einbauort: Dach hinten
Bohrung: Ø19 mm / / 15 mm x 15 mm r 2 mm
Antennenfuß: L = 11,7 cm / B = 7,6 cm / H = 6,2 cm
Bohrung: Ø19 mm / / 15 mm x 15 mm r 2 mm
Antennenfuß: L = 11,7 cm / B = 7,6 cm / H = 6,2 cm
AM/FM Anschluss: HC97(f) (Raku2)
TV/DVB-T Anschluss: Fakra(m) / Kabel 5 m / Z 75 O 3,5 mm Klinke(m) mono
Empfangsbereich
AM 0,15 - 1,71 MHz
FM 87,5 - 108 MHz
AM 0,15 - 1,71 MHz
FM 87,5 - 108 MHz
TV/DVB-T:
Band III 174 - 230 MHz
Band IV/V 470 - 790 MHz
Gewinn:
TV/DVB-T 10dB
Stromaufnahme:
AM/FM 60 mA max
AM/FM 60 mA max
DVB-T 40 mA max
Optionale Artikelnummer: (5,6 Meter AM/FM Kabel)
15-7581119 (DIN)
15-7581062 (ISO)
15-7581139 (FAKRA)
15-7581119 (DIN)
15-7581062 (ISO)
15-7581139 (FAKRA)
| Default | |
| Antenne Ausführung | AM-FM |
| Antennen Anschluss A | Fakra- stecker (M) |
| Hersteller | Antenne |
| Länge bis cm | 500 |
| Produkt Gruppe | Antennen Kombiantennen |
