Name: SHARK Dach Antenne aktiv 12V AM FM DAB+ GPS GLONASS
Brand: Eigene
Price: 149.00 USD
Availability: InStock

SHARK Dach Antenne aktiv 12V AM FM DAB+ GPS GLONASS

von 0 Bewertern • Neue Bewertung hinzufügen

from

$149,00

Netto: $149,00

Stock: In Stock
Brand: Eigene
Model: 100650

Menge

In den Warenkorb legen

Buy Now Question?

Zur Merkliste hinzufügen Zum Produktvergleich hinzufügen

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

SHARK Dach Antenne aktiv 12V AM FM DAB+ GPS GLONASS

Allgemeines

Profi Antenne im Shark Design für den Empfang von AM, FM und DAB+ GPS

Technische Daten

FM Frequenzband 87-108 MHz
DAB+ Frequenzband 170-240 MHz
GPS GLONASS Frequenzband 1575,42 MHz und 1600-1610 MHz

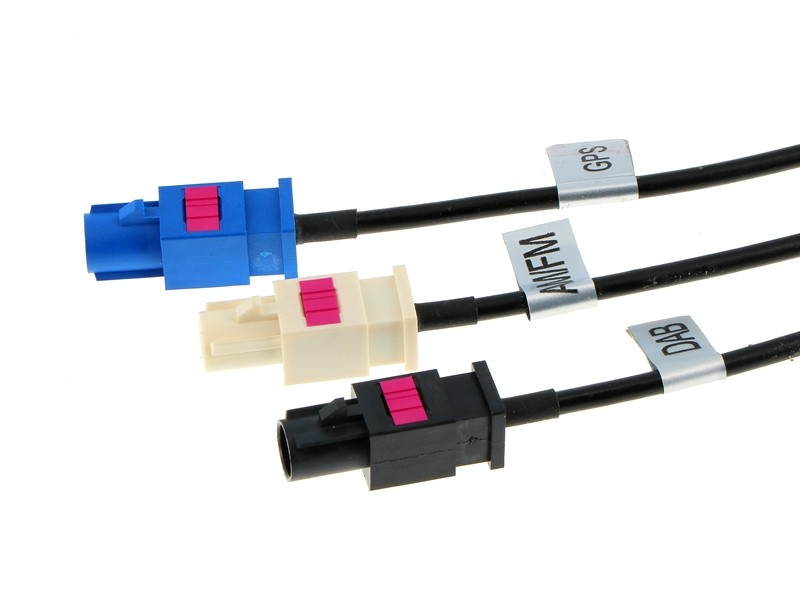

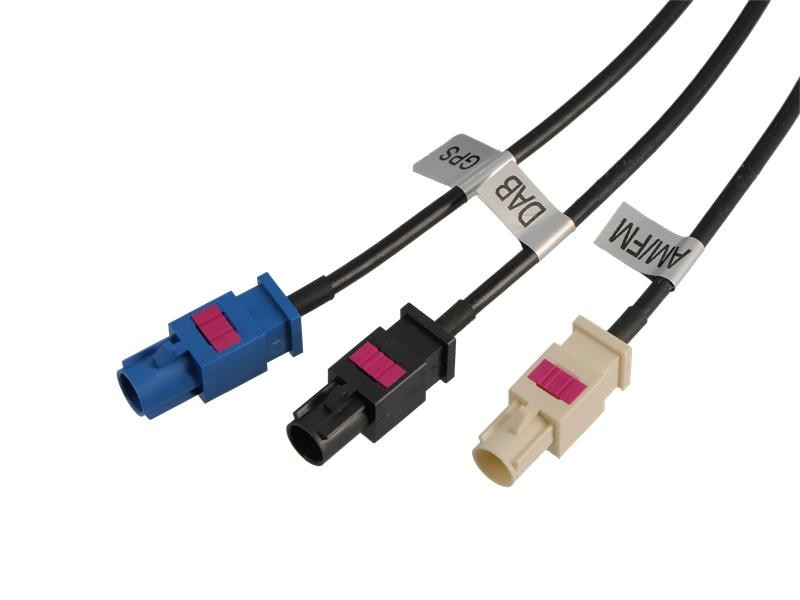

Kabel FM RG174, 250 mm lang, FAKRA (M) Stecker weiß Code B
Kabel DAB+ RG174, 250 mm lang, FAKRA (M) Stecker schwarz Code A
Kabel GPS GLONASS RG174, 250 mm lang, FAKRA (M) Stecker blau Code C
rotes Kabel mit 6,3mm Stecker für externe Stromversorgung 12 V+, 250mm lang
Verstärkung FM 12 dB
Verstärkung DAB+ 15dB
Verstärkung GPS 29dB
Spannungsversorgung 10-16 Volt
Stromverbrauch 40mA
Abmessungen 120 mm x 77 mm x 64 mm (L x B x H)

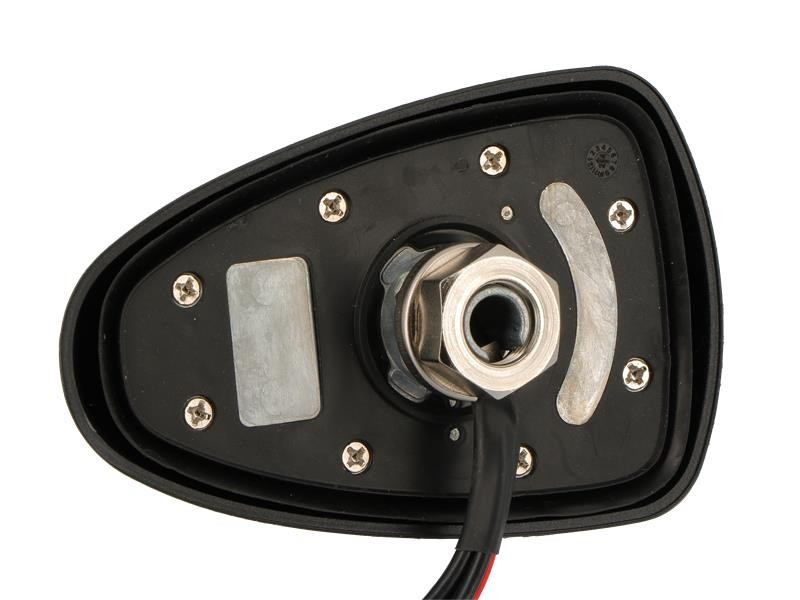

Bohrlochdurchmesser 20mm
Temperaturbereich -40 bis + 85 °C

Default
Hersteller	Eigene
Produkt Gruppe	Antennen Kombiantennen
